Enqual Ss Slotted Angle 300 Series Stainless L Channel For Building Structure
Enqual Ss Slotted Angle 300 Series Stainless L Channel For Building Structure Enqual Ss Slotted Angle 300 Series Stainless L Channel For Building Structure

Enqual Ss Slotted Angle 300 Series Stainless L Channel For Building Structure

Product Details:
Place of Origin: China
Brand Name: XFT
Certification: ISO BV TUV PED DNV etc
Model Number: Stainless Steel Angle
Payment & Shipping Terms:
Minimum Order Quantity: 1/stick
Price: Negotiable
Packaging Details: Exporting package/wooden box package/Or per customers’ requirement
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8000MT/Month
Contact Now
  • Detail Information
  • Product Description

Detail Information
Product Name: Stainless Steel Angle Grade: 300series
Type: Angle Bar Application: Building Structure Engineering Structure
Technique: Hot Rolled Cold Rolled Standard: ASTM, JIS, GB, AISI, DIN
High Light:

Enqual Ss Slotted Angle

,

Ss Slotted Angle 300 Series

,

300 Series Stainless L Channel

Product Description

Enqual Angle Stainless Steel Angle



Descriptions



Steel Equal Angles are the most basic type of roll-formed steel. Equal Steel angles are used for various purposes in a number of industries. Steel angles come in either equal sizes, unequal sizes and in duragal.Angles that have the same measure (i.e. the same magnitude) are said to be equal or congruent. An angle is defined by its measure and is not dependent upon the lengths of the sides of the angle (e.g. all right angles are equal in measure).Equal angle sections are widely used for general fabrication work, frame making, automotive applications, and in the construction industries. Equal angle has a 90° angle in the centre of the profile and both sides having equal width.



Product name Stainless Steel Angle
Standard GB ASTM, JIS, SUS, DIN, EN etc
Material Stainless Steel
Surface Finish Polished , HL , Colour Pipe , Pickling
Thickness 0.8mm - 25mm
Width 25mm*25mm-200mm*125mm / 50mm*37mm-400mm*104mm
Length 1m - 12m , or according to your requests.
Technique Hot rolled, Cold rolled
Usage Mechanical & Manufacture, Steel strcuture, Shipbuilding, Bridging, Automobile Chassis.
Another Name U channel steel, channel steel, steel channel.
Quality Test We can offer MTC (Mill Test Certificate )
Stock or Not Have Stock
Container Size

20ft GP: 5898mm(Length)x2352mm(Width)x2393mm(High)
40ft GP: 12032mm(Length)x2352mm(Width)x2393mm(High)
40ft HC: 12032mm(Lengh)x2352mm(Width)x2698mm(High)





Grade C Si Mn P S Ni Cr Mo
201 ≤0.15 ≤0.75 5.5-7.5 ≤0.06 ≤ 0.03 3.5-5.5 16.0-18.0 -
301 ≤0.15 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 6.0-8.0 16.0-18.0 -
304 ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 8.0-13.0 18.0-20.0 -
304L ≤0.03 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 9.0-13.0 18.0-20.0 -
309S ≤0.08 ≤0.75 ≤2.0 ≤0.045 ≤ 0.03 12.0-15.0 22.0-24.0 -
310S ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 19.0-22.0 24.0-26.0 -
314 ≤0.25 ≤1.5-3.0 ≤2.0 ≤0.045 ≤ 0.03 19.0-22.0 23.0-26.0
316 ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 10.0-14.0 16.0-18.0 2.0-3.0
316L ≤0.03 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 10.0-15.0 16.0-18.0 2.0-3.0
321 ≤0.08 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 9.013 17.0-19.0 -
347 ≤0.08 ≤0.75 ≤2.0 ≤0.045 ≤ 0.03 9.0-13.0 17.0-19.0
410 ≤0.15 ≤1.0 ≤1.0 ≤0.035 ≤ 0.03 - 11.5-13.5 -
420 ≤0.16-0.25 ≤1.0 ≤1.0 ≤0.040 ≤ 0.03 - 12.0-14.0 -
430 ≤0.12 ≤0.75 ≤1.0 ≤0.040 ≤ 0.03 ≤0.60 16.0-18.0 -
904L ≤0.02 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 23.0-28.0 19.0-23.0 -



Equal angle(A*T)
Size (mm) Theoretical weight (kg/m) Size (mm) Theoretical weight (kg/m) Size (mm) Theoretical weight (kg/m)
25*3 1.124 75*7 7.976 110*14 22.809
25*4 1.459 75*8 9.03 125*8 15.504
30*3 1.373 75*10 11.089 125*10 19.133
30*4 1.786 80*6 7.376 125*12 22.696
40*3 1852 80*7 8.525 125*14 26.193
40*4 2.422 80*8 9.658 140*10 21.488
40*5 2.976 80*10 11.874 140*12 25.522
50*4 3.059 90*6 8.35 140*14 2949
50*5 3.77 90*7 9658 140*16 35.393
50*6 4.465 90*8 10.946 160-10 24.729
60*5 452 90*10 13.476 160*12 29.391
60*6 5.42 90*12 15.94 160*14 33.987
63*5 4822 100*6 9366 160*16 38.518
63*6 5.721 100*7 10.83 180*12 33.159
63*8 7.469 100*8 12.276 180*14 38.518
63*10 9.151 100*10 15.12 180*16 43.542
70*5 5.397 100*12 20.611 180*18 48.634
70*6 6.406 100*16 23.257 200*14 42.894
70*7 7.398 110*7 11.928 200*16 48.68
70*8 8.373 110*8 13.532 200*18 54.401
75*5 5.818 110*10 16.69 200-20 60.056
75*6 6.905 110*12 19.782



Unequal angle(A*T)
Size (mm) Theoretical weight (kg/m) Size (mm) Theoretical weight (kg/m) Size (mm) Theoretical weight (kg/m)
25*16*3 0.912 75*50*8 7.431 125*80*7 11.066
32*20*3 1.171 75*50*10 9.098 125*80*8 12.551
32*20*4 1.522 80*50*5 5.005 125*80*10 15.474
40*25*3 1.484 80*50*6 5.935 125*80*12 18.33
40*25*4 1.936 80*50*7 6.848 140*90*8 141
45*28*3 1.687 80*50% 7.745 140*90*10 17.475
45*28*4 2.203 90*56*5 5.661 140*90*12 20.724
50*32*3 1.908 90*56*6 6.717 140*90*14 23.908
50*32*4 2.494 90*56*8 8779 160*100*10 19872
56*36*3 2.153 100*63*7 8.722 160*100*14 27.274
56*36*4 2.818 100*63*8 9878 160*100*16 30.853
56*396*5 3.466 100*63*10 12.142 180*110*10 22273
63*40*4 3.185 100*80*6 8.35 180*110*12 26.464
63*40*5 3.92 100*80*7 9656 180*110*14 30589
63*40*6 4.638 100*80*8 10.946 180*110*16 34.649
70*45*5 4.403 100*80*10 13.476 200*125*12 29.761
70*45*6 5.218 110*70*6 8.35 200*125*14 34.436
70*45*7 6011 110*70*7 9.656 200*125*16 39.045
75*50*5 4.808 110*70*8 10.946 200*125*18 43.588
75*50*6 5.699 110*70*10 13.476



Enqual Ss Slotted Angle 300 Series Stainless L Channel For Building Structure 0Enqual Ss Slotted Angle 300 Series Stainless L Channel For Building Structure 1

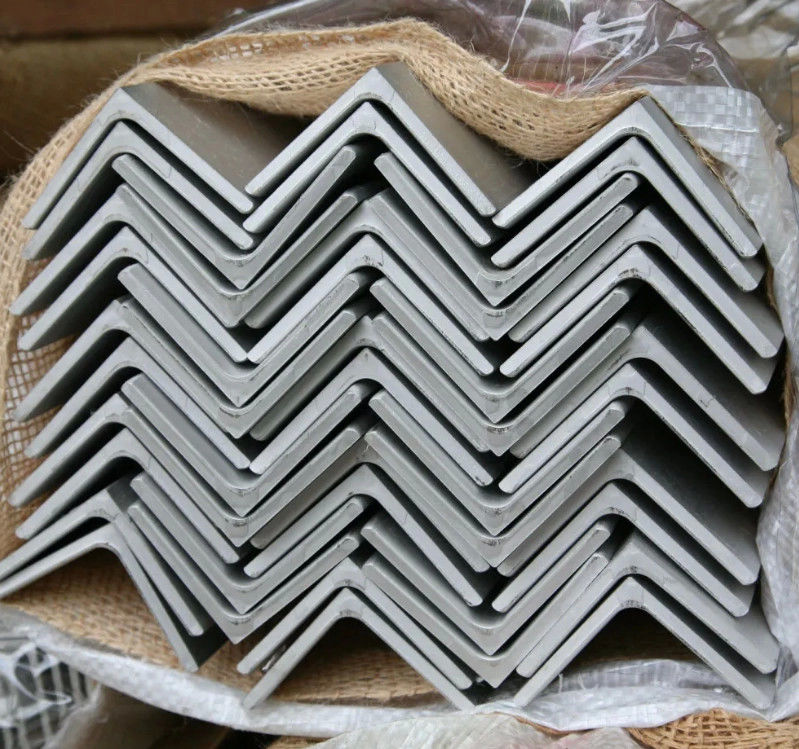

Quality Inspection:



300 Series Enqual Stainless Steel Angle Bar 25x3mm 30x3mm 40x4mm 75x10mm 3

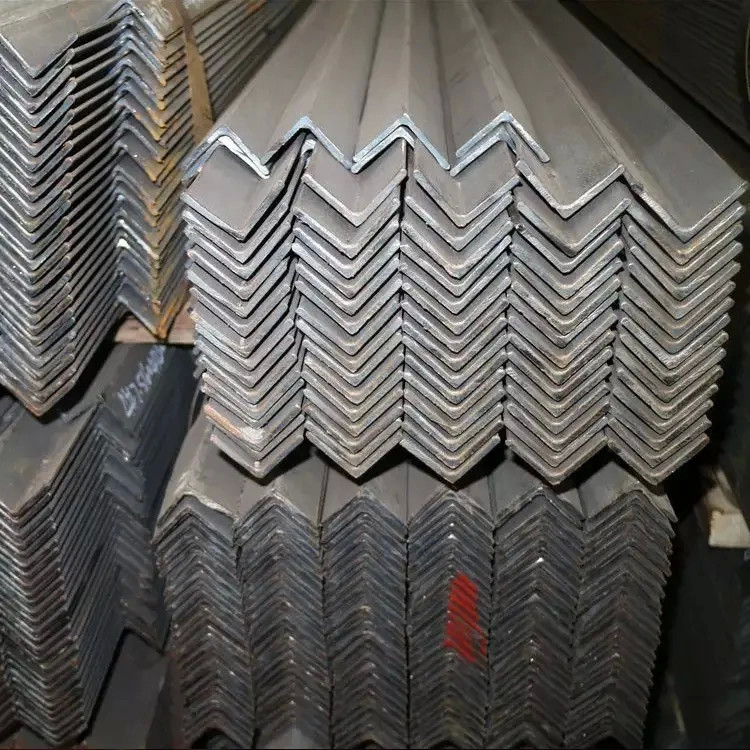

Warehouse





300 Series Enqual Stainless Steel Angle Bar 25x3mm 30x3mm 40x4mm 75x10mm 6





FAQ



Q1: Are you trading company or manufactory ?

A: We are manufacturer, factory in Wuxi ,Jiangsu.



Q2: Do you provide samples ?

A: Yes, we could provide free samples as yours requirement. However your need pay the freight cost. lt needs 5-7 days to prepare samples.



Q3: How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.For mass products, ship freight is preferred .



Q4:Do you have any MOQ limit for stainless steel products order?

A: Low MOQ, 1pcs for sample checking is available , and ideal order quantity for production is 500 tons or more.



Q5: Can you customize the stainless steel in size ,design and logo?

A: Yes, we support the size, design and logo of the customized products.



Q6: how can we guarantee quality?

A:Always a pre-production sample before mass production; Always final Inspection before shipment;



Q7: Why should you buy from us not from other suppliers?

A:All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. We have been devoted to the steel industry for several years, our foreign team understand you more better.
