Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | XFT |
| Certification: | ISO BV TUV PED DNV etc |
| Model Number: | Stainless Steel Angle |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1/stick |
| Price: | Negotiable |
| Packaging Details: | Exporting package/wooden box package/Or per customers’ requirement |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 8000MT/Month |
|
Detail Information |
|||
| Name: | Stainless Steel Angle Bar | Grade: | 301L, 301, 304N, 310S, S32305, 410, 316L, 441, 316, L4 |
|---|---|---|---|
| Standard: | AiSi, ASTM, Bs, DIN, GB, JIS | Application: | Building Structure Engineering Structure Ect... |
| Technique: | Cold Rolled , Hot Rolled | Length: | 1-12m,as Your Request |
| High Light: | Pickled Stainless Steel Angle,45X45 Stainless Steel Angle,Martensitic Stainless Equal Angle |
||
Product Description

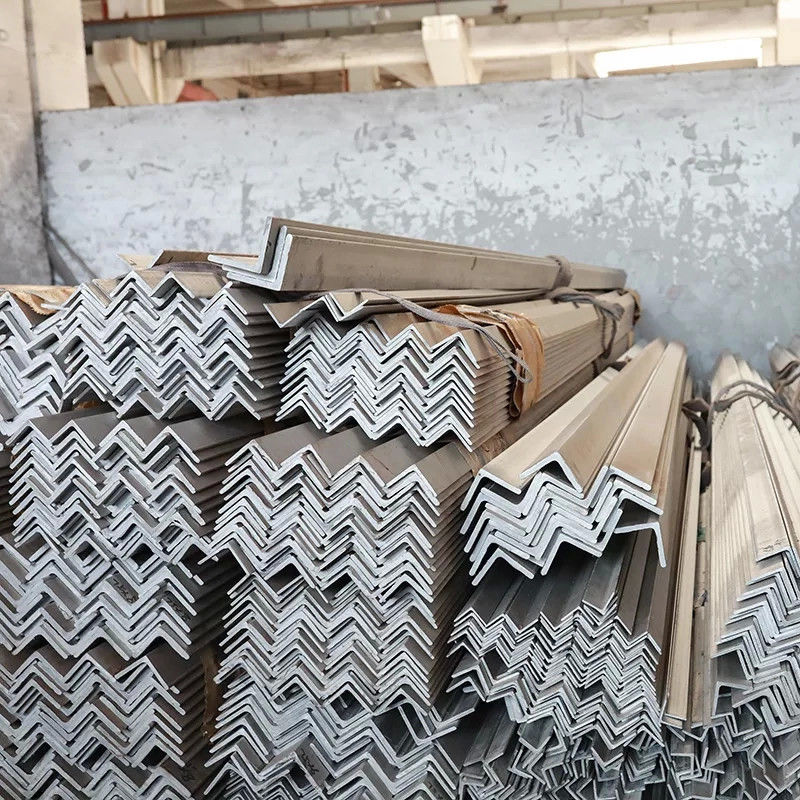

45X45 Pickled Stainless Steel Equal Angle
Descriptions
The term "Pickled" means that the material has been subjected to an acid solution that has been specifically developed to remove the high temperature oxides that appear on the surface after annealing or welding.Pickling can be divided into two main categories: chemical pickling and fermentation pickling. In chemical pickling, the food is placed in an edible liquid that kills microorganisms and includes brine (high in salt), vinegar alcohol, or oil.Hot rolled equal angles, commonly referred to as RSA (Rolled Steel Angle) or angle iron is a versatile low cost, low carbon product suitable for a wide variety of applications. Angles are rolled to 90° with a fillet radius or root radius to reduce stress concentration at the corner.
|
Commodity
|
Austenitic, Ferritic, Martensitic, Duplex, Cold rolled, Hot rolled | |||
| Grade | 201, 202, 301, 304, 304j1, 304l, 321, 309s, 310s, 2205, 409l, 410, 410s, 420, 420j1, 420j2, 430, 439, 409l, 443, 444, etc | |||
| Standard | ISO, JIS, ASTM, AS, EN, GB | |||
| Surface | N0.1, N0.2, N0.3, N0.4, N0.5, N0.6, N0.7, N0.8, 2D, 2B, HL, BA, 6K, 8K, etc | |||
| Thickness | 0.1-200mm | |||
| Width | 10-2000mm | |||
| MOQ | 1MT | |||
| Packaging | Export standard, seaworthy | |||
|
Trade Term
|
FOB, CFR, CIF | |||
| Transport Type | Container, bulk and train | |||
| Loading port | qingdao, tianjin, etc | |||
| Payment terms | T/T, L/C at sight,West Union,D/P,D/A,Paypal | |||
| Delivery time |
5-15 days after confirmed order
|
|||
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤0.75 | 5.5-7.5 | ≤0.06 | ≤ 0.03 | 3.5-5.5 | 16.0-18.0 | - |
| 301 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 304 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-13.0 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤0.75 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 19.0-22.0 | 24.0-26.0 | - |
| 314 | ≤0.25 | ≤1.5-3.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 19.0-22.0 | 23.0-26.0 | |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-15.0 | 16.0-18.0 | 2.0-3.0 |
| 321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.013 | 17.0-19.0 | - |
| 347 | ≤0.08 | ≤0.75 | ≤2.0 | ≤0.045 | ≤ 0.03 | 9.0-13.0 | 17.0-19.0 | |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | - | 11.5-13.5 | - |
| 420 | ≤0.16-0.25 | ≤1.0 | ≤1.0 | ≤0.040 | ≤ 0.03 | - | 12.0-14.0 | - |
| 430 | ≤0.12 | ≤0.75 | ≤1.0 | ≤0.040 | ≤ 0.03 | ≤0.60 | 16.0-18.0 | - |
| 904L | ≤0.02 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 23.0-28.0 | 19.0-23.0 | - |
|
Equal angle(A*T)
|
|||||
| Size (mm) | Theoretical weight (kg/m) | Size (mm) | Theoretical weight (kg/m) | Size (mm) | Theoretical weight (kg/m) |
| 25*3 | 1.124 | 75*7 | 7.976 | 110*14 | 22.809 |
| 25*4 | 1.459 | 75*8 | 9.03 | 125*8 | 15.504 |
| 30*3 | 1.373 | 75*10 | 11.089 | 125*10 | 19.133 |
| 30*4 | 1.786 | 80*6 | 7.376 | 125*12 | 22.696 |
| 40*3 | 1852 | 80*7 | 8.525 | 125*14 | 26.193 |
| 40*4 | 2.422 | 80*8 | 9.658 | 140*10 | 21.488 |
| 40*5 | 2.976 | 80*10 | 11.874 | 140*12 | 25.522 |
| 50*4 | 3.059 | 90*6 | 8.35 | 140*14 | 2949 |
| 50*5 | 3.77 | 90*7 | 9658 | 140*16 | 35.393 |
| 50*6 | 4.465 | 90*8 | 10.946 | 160-10 | 24.729 |
| 60*5 | 452 | 90*10 | 13.476 | 160*12 | 29.391 |
| 60*6 | 5.42 | 90*12 | 15.94 | 160*14 | 33.987 |
| 63*5 | 4822 | 100*6 | 9366 | 160*16 | 38.518 |
| 63*6 | 5.721 | 100*7 | 10.83 | 180*12 | 33.159 |
| 63*8 | 7.469 | 100*8 | 12.276 | 180*14 | 38.518 |
| 63*10 | 9.151 | 100*10 | 15.12 | 180*16 | 43.542 |
| 70*5 | 5.397 | 100*12 | 20.611 | 180*18 | 48.634 |
| 70*6 | 6.406 | 100*16 | 23.257 | 200*14 | 42.894 |
| 70*7 | 7.398 | 110*7 | 11.928 | 200*16 | 48.68 |
| 70*8 | 8.373 | 110*8 | 13.532 | 200*18 | 54.401 |
| 75*5 | 5.818 | 110*10 | 16.69 | 200-20 | 60.056 |
| 75*6 | 6.905 | 110*12 | 19.782 | ||
|
Unequal angle(A*T)
|
|||||
| Size (mm) | Theoretical weight (kg/m) | Size (mm) | Theoretical weight (kg/m) | Size (mm) | Theoretical weight (kg/m) |
| 25*16*3 | 0.912 | 75*50*8 | 7.431 | 125*80*7 | 11.066 |
| 32*20*3 | 1.171 | 75*50*10 | 9.098 | 125*80*8 | 12.551 |
| 32*20*4 | 1.522 | 80*50*5 | 5.005 | 125*80*10 | 15.474 |
| 40*25*3 | 1.484 | 80*50*6 | 5.935 | 125*80*12 | 18.33 |
| 40*25*4 | 1.936 | 80*50*7 | 6.848 | 140*90*8 | 141 |
| 45*28*3 | 1.687 | 80*50% | 7.745 | 140*90*10 | 17.475 |
| 45*28*4 | 2.203 | 90*56*5 | 5.661 | 140*90*12 | 20.724 |
| 50*32*3 | 1.908 | 90*56*6 | 6.717 | 140*90*14 | 23.908 |
| 50*32*4 | 2.494 | 90*56*8 | 8779 | 160*100*10 | 19872 |
| 56*36*3 | 2.153 | 100*63*7 | 8.722 | 160*100*14 | 27.274 |
| 56*36*4 | 2.818 | 100*63*8 | 9878 | 160*100*16 | 30.853 |
| 56*396*5 | 3.466 | 100*63*10 | 12.142 | 180*110*10 | 22273 |
| 63*40*4 | 3.185 | 100*80*6 | 8.35 | 180*110*12 | 26.464 |
| 63*40*5 | 3.92 | 100*80*7 | 9656 | 180*110*14 | 30589 |
| 63*40*6 | 4.638 | 100*80*8 | 10.946 | 180*110*16 | 34.649 |
| 70*45*5 | 4.403 | 100*80*10 | 13.476 | 200*125*12 | 29.761 |
| 70*45*6 | 5.218 | 110*70*6 | 8.35 | 200*125*14 | 34.436 |
| 70*45*7 | 6011 | 110*70*7 | 9.656 | 200*125*16 | 39.045 |
| 75*50*5 | 4.808 | 110*70*8 | 10.946 | 200*125*18 | 43.588 |
| 75*50*6 | 5.699 | 110*70*10 | 13.476 | ||
Quality Inspection:

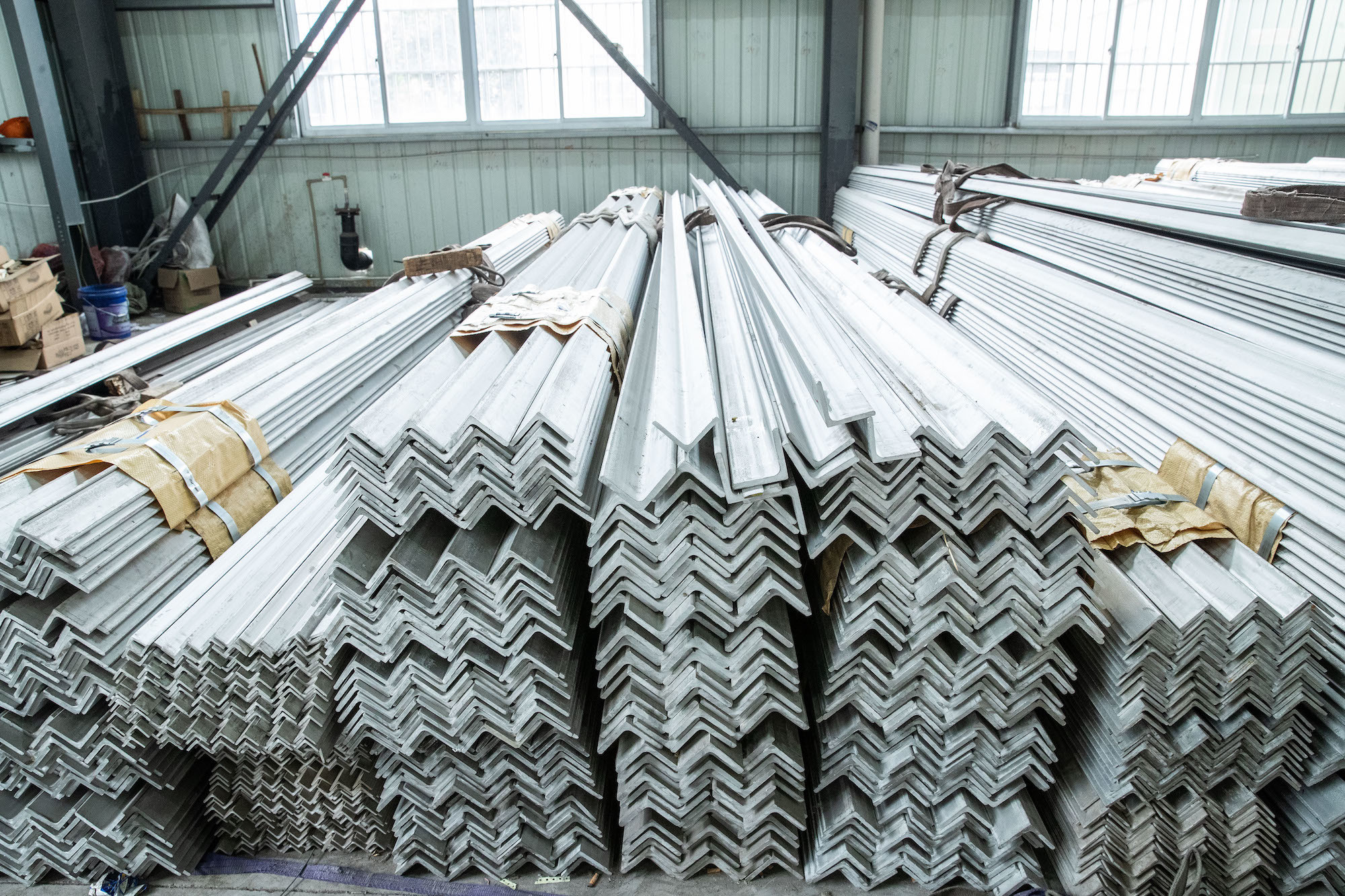

Warehouse
FAQ
Q1: Are you trading company or manufactory ?
A: We are manufacturer, factory in Wuxi ,Jiangsu.
Q2: Do you provide samples ?
A: Yes, we could provide free samples as yours requirement. However your need pay the freight cost. lt needs 5-7 days to prepare samples.
Q3: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.For mass products, ship freight is preferred .
Q4:Do you have any MOQ limit for stainless steel products order?
A: Low MOQ, 1pcs for sample checking is available , and ideal order quantity for production is 500 tons or more.
Q5: Can you customize the stainless steel in size ,design and logo?
A: Yes, we support the size, design and logo of the customized products.
Q6: how can we guarantee quality?
A:Always a pre-production sample before mass production; Always final Inspection before shipment;
Q7: Why should you buy from us not from other suppliers?
A:All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. We have been devoted to the steel industry for several years, our foreign team understand you more better.
