Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | XFT |
| Certification: | ISO BV TUV PED DNV etc |
| Model Number: | Stainless Steel Angle |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1/stick |
| Price: | Negotiable |
| Packaging Details: | Exporting package/wooden box package/Or per customers’ requirement |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 8000MT/Month |
|
Detail Information |
|||
| Product Name: | Stainless Steel Angle Bar | Application: | Building Construction |
|---|---|---|---|
| Standard: | AiSi, ASTM, DIN, GB, JIS | Technique: | Cold Rolled , Hot Rolled |
| Length: | 1-12m,as Your Request | Grade: | 301L, 301, 304N, 310S, S32305, 410, 316L, 441, 316, L4 |
| High Light: | Stainless Steel Angle ASTM,ASTM Ss Angle Bar,Painted Surface Ss Angle Bar |
||
Product Description

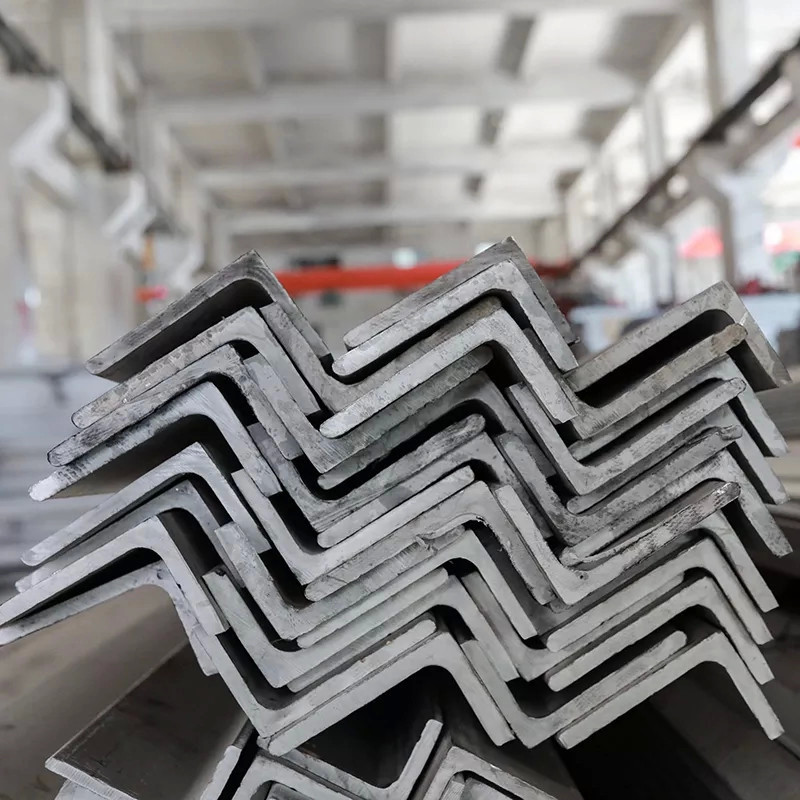

Stainless Steel Equal Angle 40*25*4mm Unequal Angle
Descriptions
Contrary to equal angle steel, unequal angle steel bars have one side of the 'L' that is longer than the other. This is usually very easily spotted but sometimes the differences in length can be less distinguishable, so it is worth checking all the same.Stainless steel angles, both laser fused and hot rolled, are a popular structural shape that see many uses and applications in the steel industry. Stainless Structurals can produce angle sizes from a 3/16” thickness all the way up to a 1.5” thickness with a full penetration weld.Steel angles are used for various purposes in a number of industries. Framing is one of the most common uses for steel angles, but steel angles are also used for brackets, trim, reinforcements, and many other uses. The larger the steel angle, the more weight and stress it can bear.
| Size |
Specification: 20*20-200*200mm
Thickness: 6m-12m (Size can be customized.) |
|||
| Surface Treatment | Hot Dip Gavalnized / Black / Painted | |||
| Material | Stainless Steel / Carbon Steel | |||
| Grade | 201/202/304/316/Q235/Q345/SS400/Duplex stainless steel,etc | |||
| Standards | AISI ASTM JIS SUS DIN GB | |||
| Certifications | ISO 9001 | |||
| Packing | Industry standard packaging or according to client's requirement | |||
| Payment | T/T,L/C,Western Union,Paypal,Apple Pay,Google Pay,D/A,D/P,MoneyGram | |||
| Delivery time |
Up to order quantity, usually delivery from factory within 7 days
|
|||
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤0.75 | 5.5-7.5 | ≤0.06 | ≤ 0.03 | 3.5-5.5 | 16.0-18.0 | - |
| 301 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 304 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-13.0 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤0.75 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 19.0-22.0 | 24.0-26.0 | - |
| 314 | ≤0.25 | ≤1.5-3.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 19.0-22.0 | 23.0-26.0 | |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-15.0 | 16.0-18.0 | 2.0-3.0 |
| 321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.013 | 17.0-19.0 | - |
| 347 | ≤0.08 | ≤0.75 | ≤2.0 | ≤0.045 | ≤ 0.03 | 9.0-13.0 | 17.0-19.0 | |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | - | 11.5-13.5 | - |
| 420 | ≤0.16-0.25 | ≤1.0 | ≤1.0 | ≤0.040 | ≤ 0.03 | - | 12.0-14.0 | - |
| 430 | ≤0.12 | ≤0.75 | ≤1.0 | ≤0.040 | ≤ 0.03 | ≤0.60 | 16.0-18.0 | - |
| 904L | ≤0.02 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 23.0-28.0 | 19.0-23.0 | - |
|
Equal angle(A*T)
|
|||||
| Size (mm) | Theoretical weight (kg/m) | Size (mm) | Theoretical weight (kg/m) | Size (mm) | Theoretical weight (kg/m) |
| 25*3 | 1.124 | 75*7 | 7.976 | 110*14 | 22.809 |
| 25*4 | 1.459 | 75*8 | 9.03 | 125*8 | 15.504 |
| 30*3 | 1.373 | 75*10 | 11.089 | 125*10 | 19.133 |
| 30*4 | 1.786 | 80*6 | 7.376 | 125*12 | 22.696 |
| 40*3 | 1852 | 80*7 | 8.525 | 125*14 | 26.193 |
| 40*4 | 2.422 | 80*8 | 9.658 | 140*10 | 21.488 |
| 40*5 | 2.976 | 80*10 | 11.874 | 140*12 | 25.522 |
| 50*4 | 3.059 | 90*6 | 8.35 | 140*14 | 2949 |
| 50*5 | 3.77 | 90*7 | 9658 | 140*16 | 35.393 |
| 50*6 | 4.465 | 90*8 | 10.946 | 160-10 | 24.729 |
| 60*5 | 452 | 90*10 | 13.476 | 160*12 | 29.391 |
| 60*6 | 5.42 | 90*12 | 15.94 | 160*14 | 33.987 |
| 63*5 | 4822 | 100*6 | 9366 | 160*16 | 38.518 |
| 63*6 | 5.721 | 100*7 | 10.83 | 180*12 | 33.159 |
| 63*8 | 7.469 | 100*8 | 12.276 | 180*14 | 38.518 |
| 63*10 | 9.151 | 100*10 | 15.12 | 180*16 | 43.542 |
| 70*5 | 5.397 | 100*12 | 20.611 | 180*18 | 48.634 |
| 70*6 | 6.406 | 100*16 | 23.257 | 200*14 | 42.894 |
| 70*7 | 7.398 | 110*7 | 11.928 | 200*16 | 48.68 |
| 70*8 | 8.373 | 110*8 | 13.532 | 200*18 | 54.401 |
| 75*5 | 5.818 | 110*10 | 16.69 | 200-20 | 60.056 |
| 75*6 | 6.905 | 110*12 | 19.782 | ||
|
Unequal angle(A*T)
|
|||||
| Size (mm) | Theoretical weight (kg/m) | Size (mm) | Theoretical weight (kg/m) | Size (mm) | Theoretical weight (kg/m) |
| 25*16*3 | 0.912 | 75*50*8 | 7.431 | 125*80*7 | 11.066 |
| 32*20*3 | 1.171 | 75*50*10 | 9.098 | 125*80*8 | 12.551 |
| 32*20*4 | 1.522 | 80*50*5 | 5.005 | 125*80*10 | 15.474 |
| 40*25*3 | 1.484 | 80*50*6 | 5.935 | 125*80*12 | 18.33 |
| 40*25*4 | 1.936 | 80*50*7 | 6.848 | 140*90*8 | 141 |
| 45*28*3 | 1.687 | 80*50% | 7.745 | 140*90*10 | 17.475 |
| 45*28*4 | 2.203 | 90*56*5 | 5.661 | 140*90*12 | 20.724 |
| 50*32*3 | 1.908 | 90*56*6 | 6.717 | 140*90*14 | 23.908 |
| 50*32*4 | 2.494 | 90*56*8 | 8779 | 160*100*10 | 19872 |
| 56*36*3 | 2.153 | 100*63*7 | 8.722 | 160*100*14 | 27.274 |
| 56*36*4 | 2.818 | 100*63*8 | 9878 | 160*100*16 | 30.853 |
| 56*396*5 | 3.466 | 100*63*10 | 12.142 | 180*110*10 | 22273 |
| 63*40*4 | 3.185 | 100*80*6 | 8.35 | 180*110*12 | 26.464 |
| 63*40*5 | 3.92 | 100*80*7 | 9656 | 180*110*14 | 30589 |
| 63*40*6 | 4.638 | 100*80*8 | 10.946 | 180*110*16 | 34.649 |
| 70*45*5 | 4.403 | 100*80*10 | 13.476 | 200*125*12 | 29.761 |
| 70*45*6 | 5.218 | 110*70*6 | 8.35 | 200*125*14 | 34.436 |
| 70*45*7 | 6011 | 110*70*7 | 9.656 | 200*125*16 | 39.045 |
| 75*50*5 | 4.808 | 110*70*8 | 10.946 | 200*125*18 | 43.588 |
| 75*50*6 | 5.699 | 110*70*10 | 13.476 | ||
Quality Inspection:
Warehouse
FAQ
Q1: Are you trading company or manufactory ?
A: We are manufacturer, factory in Wuxi ,Jiangsu.
Q2: Do you provide samples ?
A: Yes, we could provide free samples as yours requirement. However your need pay the freight cost. lt needs 5-7 days to prepare samples.
Q3: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.For mass products, ship freight is preferred .
Q4:Do you have any MOQ limit for stainless steel products order?
A: Low MOQ, 1pcs for sample checking is available , and ideal order quantity for production is 500 tons or more.
Q5: Can you customize the stainless steel in size ,design and logo?
A: Yes, we support the size, design and logo of the customized products.
Q6: how can we guarantee quality?
A:Always a pre-production sample before mass production; Always final Inspection before shipment;
Q7: Why should you buy from us not from other suppliers?
A:All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. We have been devoted to the steel industry for several years, our foreign team understand you more better.
