Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | XFT |
| Certification: | ISO BV TUV PED DNV etc |
| Model Number: | Stainless Steel Angle |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1/stick |
| Price: | Negotiable |
| Packaging Details: | Exporting package/wooden box package/Or per customers’ requirement |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 8000MT/Month |
|
Detail Information |
|||
| Name: | Stainless Steel Angle Bar Unequal Angle | Grade: | 200/300/400 Series |
|---|---|---|---|
| Standard: | AiSi, ASTM, Bs, DIN, GB, JIS | Application: | Building Structure Engineering Structure Ect... |
| Thickness: | 25-125mm Or As Request | Length: | According To Your Requests |
| High Light: | AISI 316 Stainless Steel Angle,316 Stainless Steel Angle 125mm,Engineering Structure Stainless Steel Angle |
||
Product Description

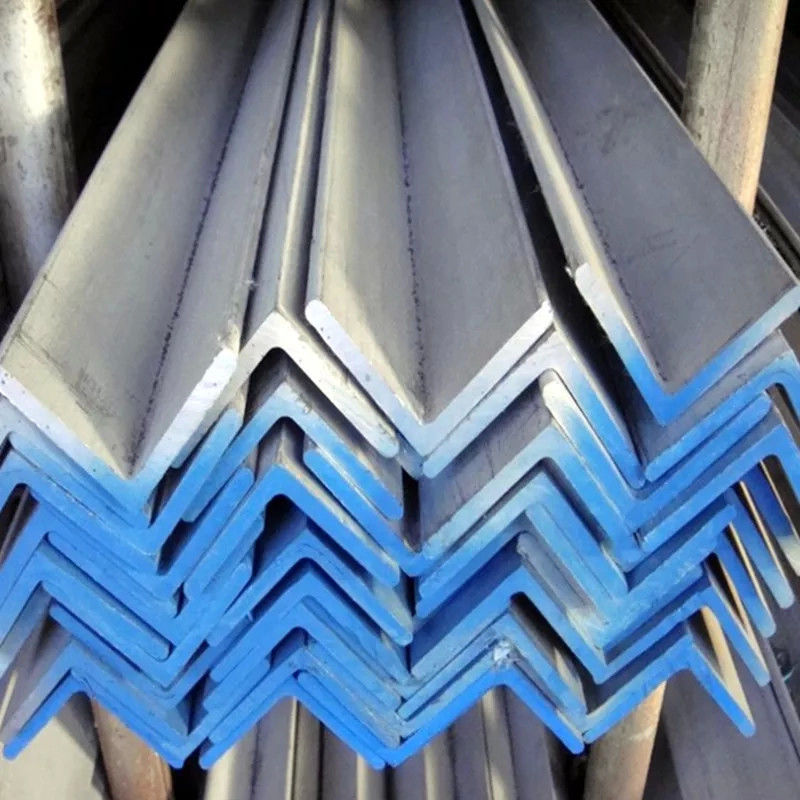

AISI 316 317 Stainless Steel Unequal Angle
Descriptions
Hot rolled unequal angle, commonly referred to as RSA (Rolled Steel Angle) or angle iron is a versatile low cost, low carbon product suitable for a wide variety of applications. Angles are rolled to 90° with a fillet radius or root radius to reduce stress concentration at the corner.Unequal angle steel can be used for a huge array of purposes where uneven support is required in a project. For example, vehicles are usually asymmetrical or carrying more weight in certain parts than others, therefore uneven steel bars could be a practical form of structural reinforcement.
|
Pruduct name
|
Stainless Steel Angle
|
| Shape | Equal or Unequal |
| Standard | ASTM, SUS, GB, DIN, JIS, EN, etc |
| Technical | Hot Rolled |
| Surface Treatment | Black, Bright or as request |
| Grade |
200/300/400 Series
|
| Thickness |
25-125mm or as request
|
| Length |
1m - 12m, or according to your requests
|
| Application |
Mechanical & Manufacture, Steel strcuture, Shipbuilding, Bridging, Automobile Chassis
|
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤0.75 | 5.5-7.5 | ≤0.06 | ≤ 0.03 | 3.5-5.5 | 16.0-18.0 | - |
| 301 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 304 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-13.0 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤0.75 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 19.0-22.0 | 24.0-26.0 | - |
| 314 | ≤0.25 | ≤1.5-3.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 19.0-22.0 | 23.0-26.0 | |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-15.0 | 16.0-18.0 | 2.0-3.0 |
| 321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.013 | 17.0-19.0 | - |
| 347 | ≤0.08 | ≤0.75 | ≤2.0 | ≤0.045 | ≤ 0.03 | 9.0-13.0 | 17.0-19.0 | |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | - | 11.5-13.5 | - |
| 420 | ≤0.16-0.25 | ≤1.0 | ≤1.0 | ≤0.040 | ≤ 0.03 | - | 12.0-14.0 | - |
| 430 | ≤0.12 | ≤0.75 | ≤1.0 | ≤0.040 | ≤ 0.03 | ≤0.60 | 16.0-18.0 | - |
| 904L | ≤0.02 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 23.0-28.0 | 19.0-23.0 | - |
|
Equal angle(A*T)
|
|||||
| Size (mm) | Theoretical weight (kg/m) | Size (mm) | Theoretical weight (kg/m) | Size (mm) | Theoretical weight (kg/m) |
| 25*3 | 1.124 | 75*7 | 7.976 | 110*14 | 22.809 |
| 25*4 | 1.459 | 75*8 | 9.03 | 125*8 | 15.504 |
| 30*3 | 1.373 | 75*10 | 11.089 | 125*10 | 19.133 |
| 30*4 | 1.786 | 80*6 | 7.376 | 125*12 | 22.696 |
| 40*3 | 1852 | 80*7 | 8.525 | 125*14 | 26.193 |
| 40*4 | 2.422 | 80*8 | 9.658 | 140*10 | 21.488 |
| 40*5 | 2.976 | 80*10 | 11.874 | 140*12 | 25.522 |
| 50*4 | 3.059 | 90*6 | 8.35 | 140*14 | 2949 |
| 50*5 | 3.77 | 90*7 | 9658 | 140*16 | 35.393 |
| 50*6 | 4.465 | 90*8 | 10.946 | 160-10 | 24.729 |
| 60*5 | 452 | 90*10 | 13.476 | 160*12 | 29.391 |
| 60*6 | 5.42 | 90*12 | 15.94 | 160*14 | 33.987 |
| 63*5 | 4822 | 100*6 | 9366 | 160*16 | 38.518 |
| 63*6 | 5.721 | 100*7 | 10.83 | 180*12 | 33.159 |
| 63*8 | 7.469 | 100*8 | 12.276 | 180*14 | 38.518 |
| 63*10 | 9.151 | 100*10 | 15.12 | 180*16 | 43.542 |
| 70*5 | 5.397 | 100*12 | 20.611 | 180*18 | 48.634 |
| 70*6 | 6.406 | 100*16 | 23.257 | 200*14 | 42.894 |
| 70*7 | 7.398 | 110*7 | 11.928 | 200*16 | 48.68 |
| 70*8 | 8.373 | 110*8 | 13.532 | 200*18 | 54.401 |
| 75*5 | 5.818 | 110*10 | 16.69 | 200-20 | 60.056 |
| 75*6 | 6.905 | 110*12 | 19.782 | ||
|
Unequal angle(A*T)
|
|||||
| Size (mm) | Theoretical weight (kg/m) | Size (mm) | Theoretical weight (kg/m) | Size (mm) | Theoretical weight (kg/m) |
| 25*16*3 | 0.912 | 75*50*8 | 7.431 | 125*80*7 | 11.066 |
| 32*20*3 | 1.171 | 75*50*10 | 9.098 | 125*80*8 | 12.551 |
| 32*20*4 | 1.522 | 80*50*5 | 5.005 | 125*80*10 | 15.474 |
| 40*25*3 | 1.484 | 80*50*6 | 5.935 | 125*80*12 | 18.33 |
| 40*25*4 | 1.936 | 80*50*7 | 6.848 | 140*90*8 | 141 |
| 45*28*3 | 1.687 | 80*50% | 7.745 | 140*90*10 | 17.475 |
| 45*28*4 | 2.203 | 90*56*5 | 5.661 | 140*90*12 | 20.724 |
| 50*32*3 | 1.908 | 90*56*6 | 6.717 | 140*90*14 | 23.908 |
| 50*32*4 | 2.494 | 90*56*8 | 8779 | 160*100*10 | 19872 |
| 56*36*3 | 2.153 | 100*63*7 | 8.722 | 160*100*14 | 27.274 |
| 56*36*4 | 2.818 | 100*63*8 | 9878 | 160*100*16 | 30.853 |
| 56*396*5 | 3.466 | 100*63*10 | 12.142 | 180*110*10 | 22273 |
| 63*40*4 | 3.185 | 100*80*6 | 8.35 | 180*110*12 | 26.464 |
| 63*40*5 | 3.92 | 100*80*7 | 9656 | 180*110*14 | 30589 |
| 63*40*6 | 4.638 | 100*80*8 | 10.946 | 180*110*16 | 34.649 |
| 70*45*5 | 4.403 | 100*80*10 | 13.476 | 200*125*12 | 29.761 |
| 70*45*6 | 5.218 | 110*70*6 | 8.35 | 200*125*14 | 34.436 |
| 70*45*7 | 6011 | 110*70*7 | 9.656 | 200*125*16 | 39.045 |
| 75*50*5 | 4.808 | 110*70*8 | 10.946 | 200*125*18 | 43.588 |
| 75*50*6 | 5.699 | 110*70*10 | 13.476 | ||
Quality Inspection:
Warehouse
FAQ
Q1: Are you trading company or manufactory ?
A: We are manufacturer, factory in Wuxi ,Jiangsu.
Q2: Do you provide samples ?
A: Yes, we could provide free samples as yours requirement. However your need pay the freight cost. lt needs 5-7 days to prepare samples.
Q3: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.For mass products, ship freight is preferred .
Q4:Do you have any MOQ limit for stainless steel products order?
A: Low MOQ, 1pcs for sample checking is available , and ideal order quantity for production is 500 tons or more.
Q5: Can you customize the stainless steel in size ,design and logo?
A: Yes, we support the size, design and logo of the customized products.
Q6: how can we guarantee quality?
A:Always a pre-production sample before mass production; Always final Inspection before shipment;
Q7: Why should you buy from us not from other suppliers?
A:All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. We have been devoted to the steel industry for several years, our foreign team understand you more better.
